APV Series




Vortex Sewage/Slurry Submersible Pump

Technical Specification

  • Head : upto 20mtr.
  • Capacity : upto 70m³ /hr.
  • Motor : Two pole Continuous Duty, Squirrel Cage,Submersible type Induction Motor.
  • Speed(Syn.) : 3000RPM
  • Range : upto 5.0HP
  • Temperature : 45°C (Also available for higher temperature on request)
  • Voltage : 415V,3θ,50Hz 110V,3θ,60Hz
  • Class of Insulation : 'f' Class(optional 'H' Class available on request)
  • Protection : IP68
  • Concentration : upto 20%
  • Free Passage : upto 60mm

SALIENT FEATURES

  • Light in Weight.
  • Can Move Solids.
  • Easy Maintenance.
  • Portable For Easy Handling.
  • Can be used for permanent Installation.

  • Removal of Unscreened Sewage.
  • Cleaning of Manhle/ Trenches, Mobile Wet Pit Sewer Bypass Operation.
  • Transfer of Suspended Solids.
  • Pumping of Waste / Strom Water , Kitchen Waste.

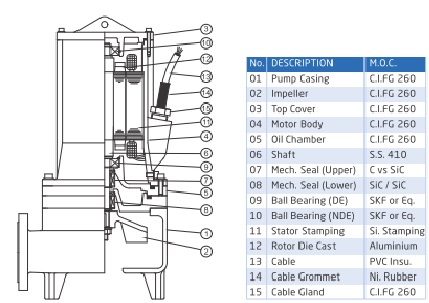

  • Motor Body : CF8 , CF8M , CF3M , CD4MCu
  • Pump Casing : CF8 , CF8M , CF3M , CD4MCu
  • Impeller : CF8 , CF8M , CF3M , CD4MCu
  • Shaft : AISI 420, AISI 431 , AISI 304 , AISI 316 , AISI 316L
  • Mechanical Seal: SIC/SIC, TC/TC, C/ SIC, C/ Cr Steel, C/Ce
  • Cable: H07RNF , FRLS
