AMS Series




Manhole Submersible Pump

Technical Specification

  • Head : upto 25mtr.
  • Capacity : upto 250m³ /hr.
  • Motor : Four Pole Continuous Duty, Squirrel Cage, Submersible type Induction Motor.
  • Speed(Syn.) : 1500RPM
  • Range : 3.0 HP to 15.0 HP
  • Connection : DOL / Star Delta
  • Temperature : 45°C (Also available for higher temperature on request)
  • Voltage : 415V,3θ,50Hz 110V,3θ,60Hz
  • Class of Insulation : 'f' Class(optional 'H' Class available on request)
  • Protection : IP68
  • Concentration : upto40%
  • Free Passage : upto 85mm

Salient Features

  • Light in Weight.
  • Easy Maintenance.
  • Portable For Easy Handling.
  • Space Saving Design.
  • Can be used under Partially Submergence.
  • Can Move Solids upto 85mm.
  • Suitable for Manhole upto 600mm.

  • Removal of Unscreened Sewage.
  • Transfer of Suspended Solids.
  • Pumping of Waste / Strom water.
  • Cleaning of Manhole, Mobile Wet Pit Sewer Bypass Operation.

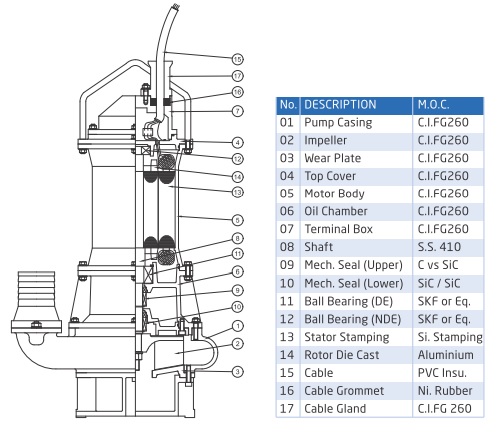

  • Motor Body :CI, AISI 304, AISI 316 , CF8 , CF8M , CD4MCu
  • Pump Casing : CF8, CF8M, CF3M, CD4MCu

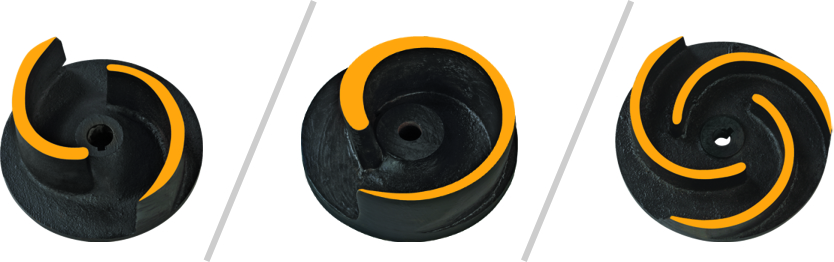

  • Impeller : CF8, CF8M, CF3M, CD4MCu
  • Wear plate : CF8, CF8M, CF3M , CD4MCu
  • Shaft : AISI 420, AISI 431 , AISI 304 , AISI 316 , AISI 316L
  • Mechanical Seal: SIC/SIC, TC/TC, C/ SIC, C/ Cr Steel, C/Ce
  • Cable: H07RNF , FRLS
