ALS Series




Sewage Submersible Pump

Technical Specification

  • Head : upto 75mtr.
  • Capacity : upto 200m³ /hr.
  • Motor : Two Pole Continuous Duty, Squirrel Cage, Submersible type Induction Motor.
  • Speed(Syn.) : 3000RPM
  • Range : 0.75 HP to 30.0 HP
  • Connection : DOL(Star Delta optional)
  • Temperature : 45°C (Also available for higher temperature on request)
  • Voltage : 415V,3θ,50Hz 230V,1θ,50Hz(upto 3.0HP) 110V,3θ,60Hz 110V,1θ.60Hz
  • Class of Insulation : 'f' Class(optional 'H' Class available on request)
  • Protection : IP68
  • Concentration : upto15%
  • Free Passage : upto 50mm

Salient Features

  • Light in Weight.
  • Easy Maintenance.
  • Portable For Easy Handling.
  • Bottom Suction & Side Delivery.
  • Can be used for permanent Installation.
  • Can move Solids upto 50mm.
  • All kind of discharge Connection Available.

  • Removal of all sorts of Industrial Waste Water.
  • Suitable for Handling Screened Sewage.
  • Cleaning of Manholes/Trenches.
  • Removal of Kitchen Waste.

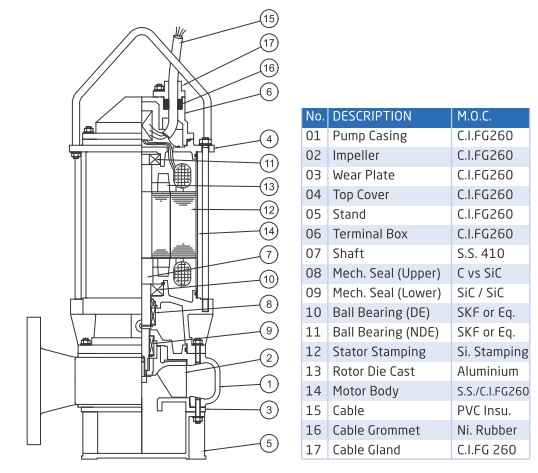

  • Motor Body : AISI 304, AISI 316 , CF8 , CF8M
  • Pump Casing : CF8, CF8M, CF3M

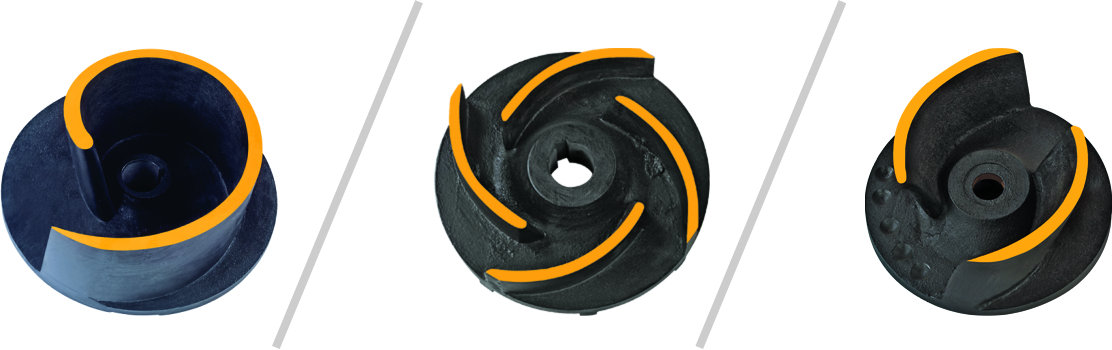

  • Impeller : CA15, CA40 , CFB , CFBM, CF3M
  • Wear plate : CA15, CA40 , CFB , CFBM, CF3M
  • Shaft : AISI 420, AISI 431 , AISI 304 , AISI 316 , AISI 316L
  • Mechanical Seal: SIC/SIC, TC/TC, C/ SIC, C/ Cr Steel, C/Ce
  • Strainer : AISI 304 , AISI 316
  • Cable: H07RNF , FRLS
