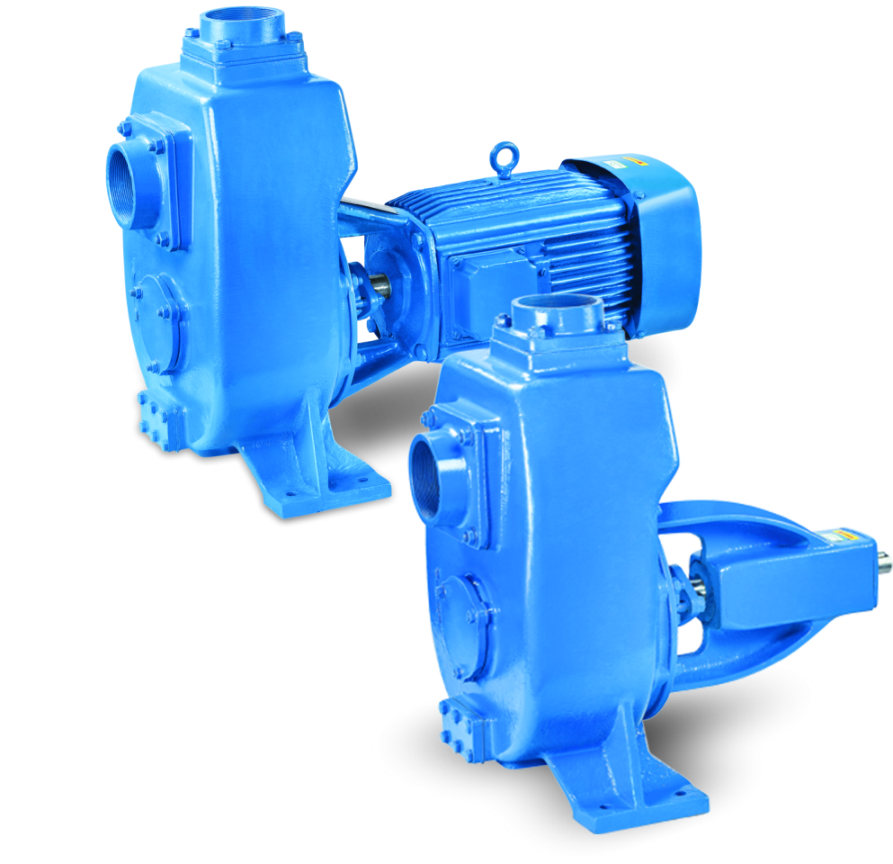

ASP Series




Centrifugal SelfPriming MudPump

Technical Specification

  • Head : upto 60mtr.
  • Capacity : upto 650m³ /hr.
  • Suction Lift : upto 6mtr
  • Range : upto 60.0HP
  • Driver : Motor : 3000/1500RPM
  • Shaft Sealing : Gland Packed
  • Free Passage : upto 50mm

Salient Features

  • Back Pull Out design.
  • 100% Vacuum Creation for Higher Efficiency.
  • No need of External Bearing Lubrication.
  • Cost can be Reduced using Monoblock version.
  • No need of Foot Value.
  • Vibration Free Operation.
  • Easy to Maintenance.

  • Dewatering of Excavation Water, Trenches, Pits, Sewage Pumping, Puming Watering from Docks , Ports and Vessels, Pumping Petroleum Products, Chemicals , Effluents , Ash Water, Tiles / Marble Slurries , Filter Press etc.. Cooling Water for Marine Engines and Solvents.

  • Pump Casing :CA15 , CF8 , CF8M , Bronze

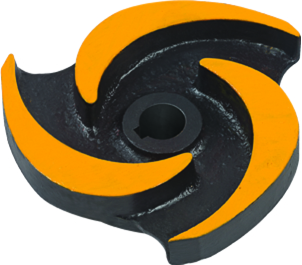

  • Impeller : CA15 , CF8 , CF8M
  • Wear Plate : CA15 , CF8 , CF8M
  • Shatft : AISI 410 , AISI 304 , AISI 316
  • Shatft Sleeve : AISI 304 , AISI 316
