AS Series




Sewage Submersible Pump

Technical Specification

  • Head : upto 75mtr.
  • Capacity : upto 2000m³ /hr.
  • Motor : four/six Pole Continuous Duty, Squirrel Cage, Submersible type Induction Motor.
  • Speed(Syn.) : 1500/1000RPM
  • Connection : DOL/ Star Delta / ATS
  • Range : 2.0 HP to 150.0 HP
  • Temperature : 45°C (Also available for higher temperature on request)
  • Voltage : 415V,3θ,50Hz 110V,3θ,60Hz
  • Class of Insulation : 'f' Class(optional 'H' Class available on request)
  • Protection : IP68
  • Concentration : upto40%
  • Free Passage : upto 125mm

Salient Features

  • Heavy & Durable Construction.
  • Minimized Vibration & Noise Level.
  • Bottom Suction & Side Delivery .
  • Can be used under Partially Submergence.
  • Easy Maintenance.
  • All kind of discharge Connection Available.
  • Saves Heavy Construction Cost.
  • Can move Solids upto 125mm.
  • Can be used for Dry Well and Wet Well.

  • Removal of Unscreened Sewage.
  • Transfer of Suspended Solids.
  • Pumping of Waste / Storm Water.
  • Handling of Treated Effluent with Slurries and Solids.

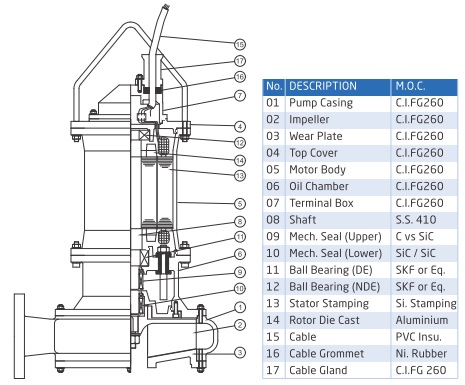

  • Motor Body :CF8, CF8M, CF3M, CD4MCu
  • Pump Casing : CF8, CF8M, CF3M, CD4MCu

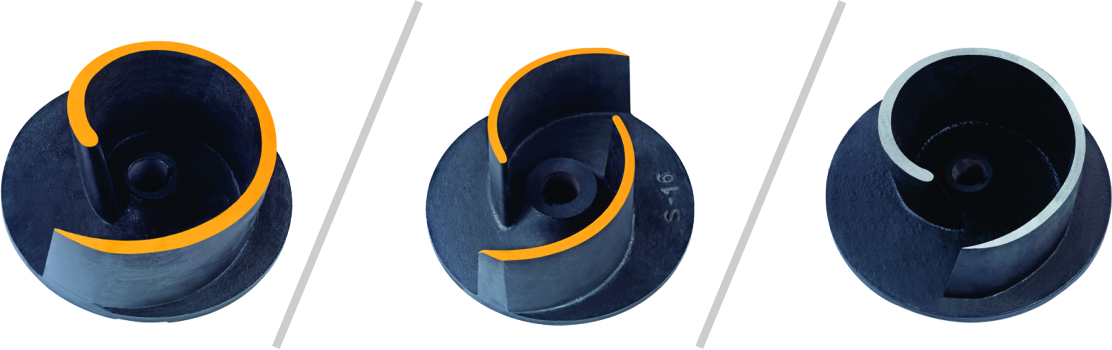

  • Impeller : CF8, CF8M, CF3M, CD4MCu
  • Wear plate : CF8, CF8M, CF3M, CD4MCu
  • Shaft : AISI 420, AISI 431 , AISI 304 , AISI 316 , AISI 316L
  • Mechanical Seal: SIC/SIC, TC/TC, C/ SIC, C/ Cr Steel, C/Ce
  • Cable: H07RNF , FRLS
