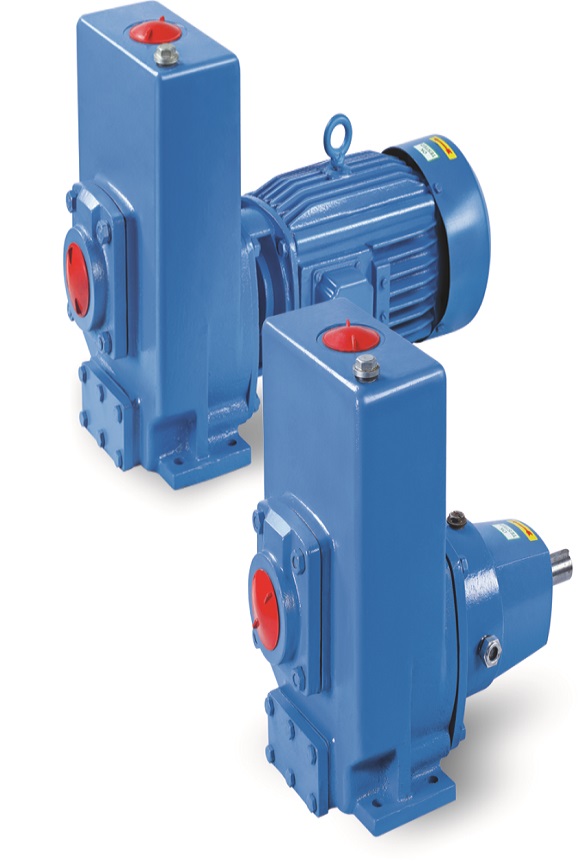

AEP Series




Centrifugal SelfPriming Pump

Technical Specification

  • Head : upto 50mtr.
  • Capacity : upto 76m³ /hr.
  • Suction lift : upto 6mtr.
  • Driver :Motor: 3000RPM
  • Range : upto 7.5HP
  • Shaft Sealing : Mechanical Seal
  • Free Passage : upto 24mm

Salient Features

  • Back Pull Out Design.
  • Ensures Zero Leakage using Mechanical Seal.
  • No need of External Bearing Lubrication.
  • 100% Vacuum Creation for Higher Efficiency.
  • Cost can be Reduced using Monoblock Version.
  • Easy Maintenance.

  • Dewatering Swamp, Trenches and Basement , Construction , Sites and Swimming Pool, Effluent Treatment Plant Marine Application, Lift Irrigation and Water Spraying.

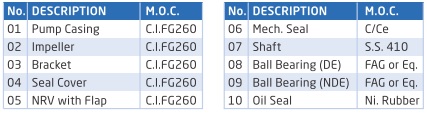

  • Pump Casing :CA15 , CF8 , CF8M
  • Impeller : CA15 , CF8 , CF8M
  • Wear Plate : CA15 , CF8 , CF8M
  • Shatft : AISI 410 , AISI 316
  • Mechanical Seal : SiC / SiC , TC / TC
