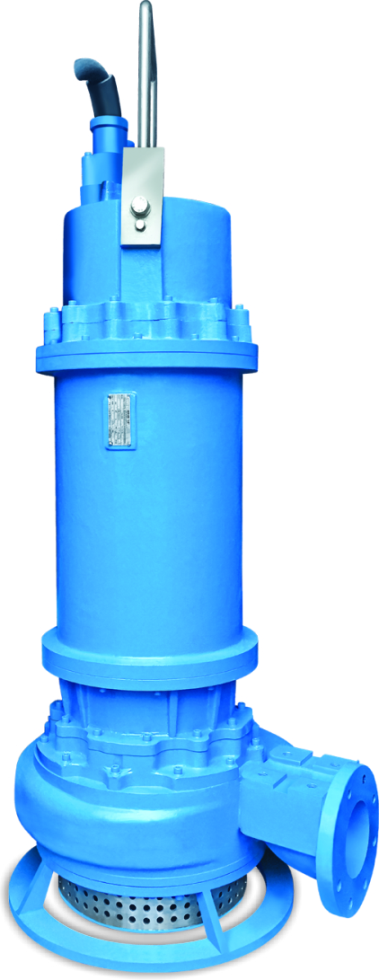

ACS Series




Centrifugal Submerged Pump

Technical Specification

  • Head : upto 80mtr.
  • Capacity : upto 800m³ /hr.
  • Motor : Two/Four Pole Continuous Duty, Squirrel Cage, Submersible type Induction Motor.
  • Speed(Syn.) : 3000/1500RPM
  • Range : upto 150.0 HP
  • Connection : DOL/ Star Delta /ATS
  • Temperature : 45°C (Also available for higher temperature on request)
  • Voltage : 415V,3θ,50Hz 110V,3θ,60Hz
  • Class of Insulation : 'f' Class(optional 'H' Class available on request)
  • Protection : IP68
  • Concentration : upto 50000ppm

Salient Features

  • Light in Weight.
  • Suitable for Vertical and Horizontal Installation.
  • Heavy and Durable Construction.
  • Trouble free Operation.
  • Long Lasting life.
  • Easy Installation & No Need of Heavy Infrastructure.

  • Handling of Clear Water , River Bed , Dam Sites.
  • Hydro Power Stations , Canals.

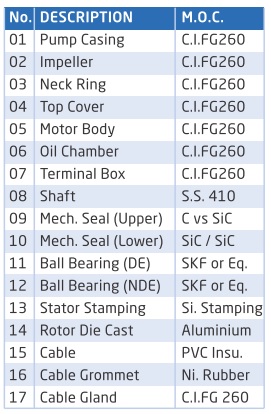

  • Motor Body : CF8, CF8M, CF3M , CD4MCu
  • Pump Casing : CF8, CF8M, CF3M , CD4MCu
  • Impeller : CF8, CF8M, CF3M , CD4MCu
  • Shaft : AISI 420, AISI 431 , AISI 304 , AISI 316 , AISI 316L
  • Mechanical Seal: SIC/SIC, TC/TC, C/ SIC, C/ Cr Steel, C/Ce
  • Strainer : AISI 304 , AISI 316
  • Cable: H07RNF , FRLS
