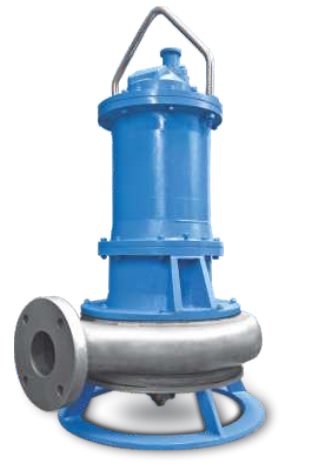

ASR Series




Slurry Submersible Pump

Technical Specification

  • Head : upto 50mtr.
  • Capacity : upto 400m³ /hr.
  • Motor : Four Pole Continuous Duty, Squirrel Cage, Submersible type Induction Motor.
  • Speed(Syn.) : 1500RPM
  • Range : upto 60.0 HP
  • Connection : DOL/ Star Delta /ATS
  • Temperature : 45°C (Also available for higher temperature on request)
  • Voltage : 415V,3θ,50Hz
  • Class of Insulation : 'f' Class(optional 'H' Class available on request)
  • Protection : IP68
  • Free Passage : upto 40mm
  • Specific Gravity : upto 2.8

Salient Features

  • Portable Installation..
  • Bottom Suction & Side Delivery.
  • Heavy and Durable Construction.
  • Minimized Vibration & Noise Level.
  • Can be used under Partially Submergence.
  • Easy Maintenance.
  • Suitable to handle Variable Specific Gravity of Liquid.

  • Handling all types of Coal and Marble Slurries , Mine Drainage.
  • Removal of sands/ Mud, Dredgingof Settling lagoons.
  • Removal of Drilling Mud.

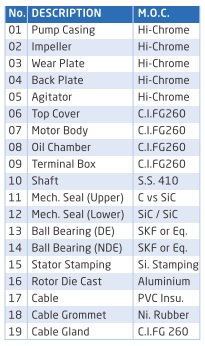

  • Pump Casing : CI , CA15 , CA 40
  • Impeller : CI , CA15 , CA 40
  • Wear Plate : CI , CA15 , CA 40
  • Back Plate : CI , CA15 , CA 40
  • Agitator : CI , CA15 , CA 40
  • Shaft : AISI 420, AISI 431 , AISI 304 , AISI 316 , AISI 316L
