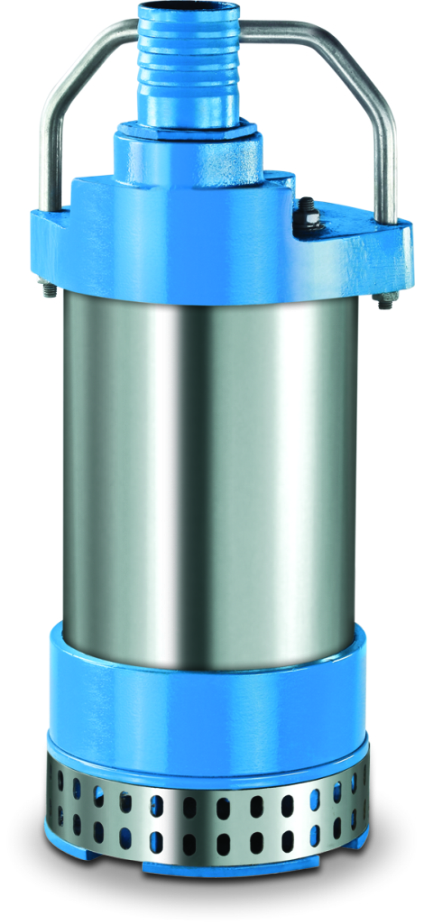

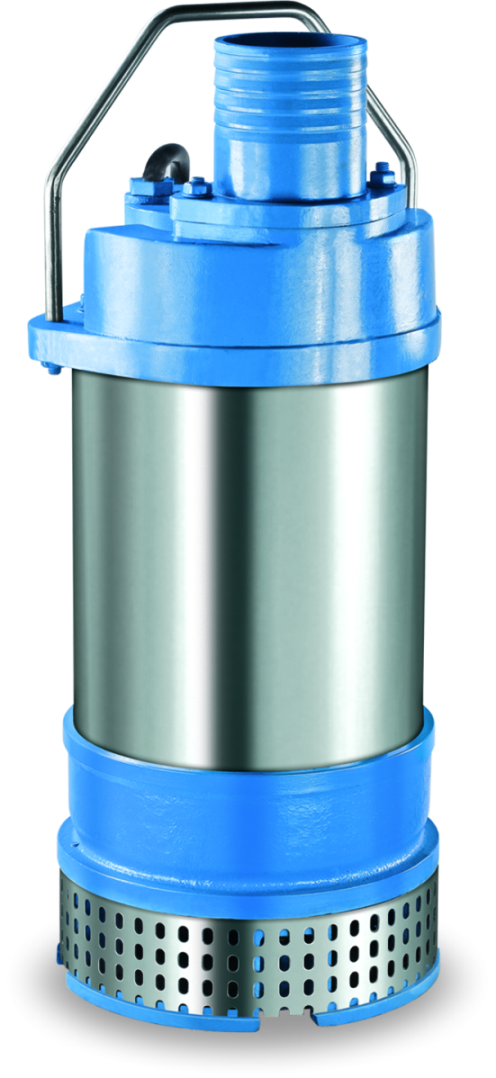

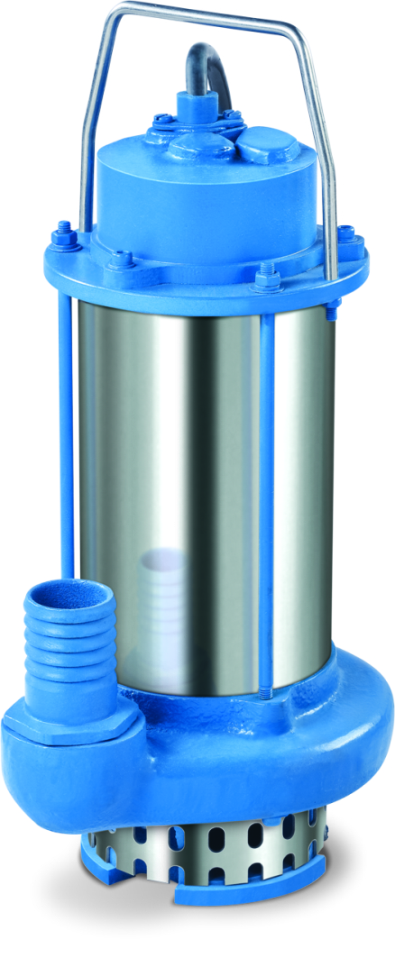

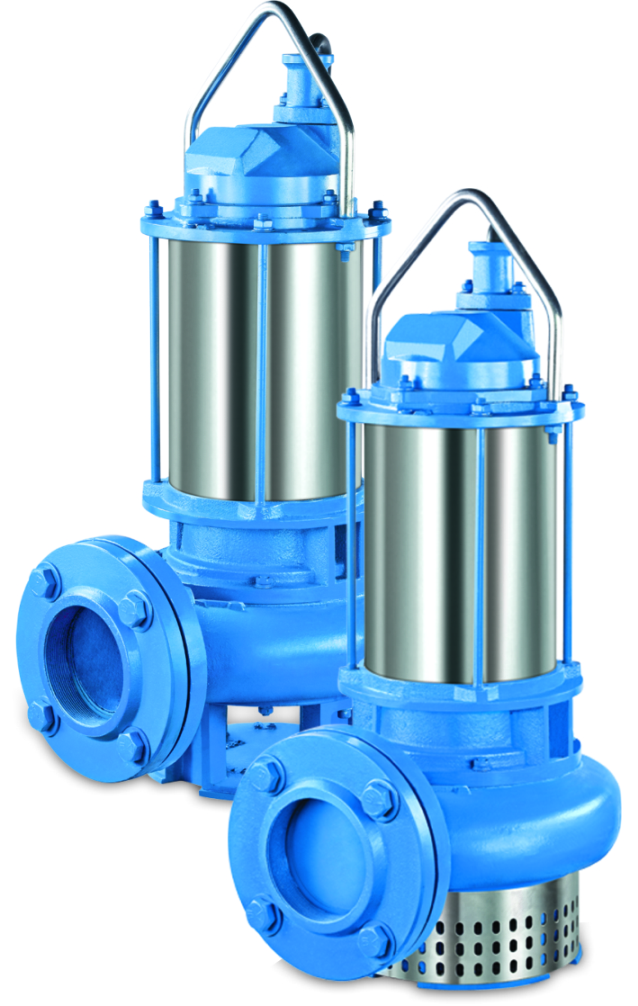

AD Series



Dewatering Submersible Pump


Technical Specification

  • Head : upto 75mtr.
  • Capacity : upto 600m³ /hr.
  • Motor : Two/four Pole Continuous Duty, Squirrel Cage, Submersible type Induction Motor.
  • Speed(Syn.) : 3000/1500RPM
  • Range : 0.75 HP to 70.0 HP
  • Temperature : 45°C (Also available for higher temperature on request)
  • Voltage : 415V,3θ,50Hz 230V,1θ,50Hz(upto 3.0HP) 110V,3θ,60Hz 110V,1θ.60Hz
  • Class of Insulation : 'f' Class(optional 'H' Class available on request)
  • Protection : IP68
  • Concentration : 50000ppm
  • Free Passage : upto 25mm

Salient Features

  • Light in Weight.
  • Works in Partially Submergence.
  • Portable For Easy Handling.
  • Can handle upto Minimized Water Lavel.
  • Prevents Motor Heating Through jacket.
  • Bottom Suction & Top Centre Lined Delivery.
  • Easy Maintenance.
  • Double Mechanical Seals With Hard Face Combination.

  • Dewatering of Dirty Water.
  • Dewatering of Sandy/Muddy Water.
  • Handling of Strom Water.
  • Suitable for Pits, Dam Sites , River Bed , Construction Sites, Basements , Cable , Trenches , Cooling Water Circulation.

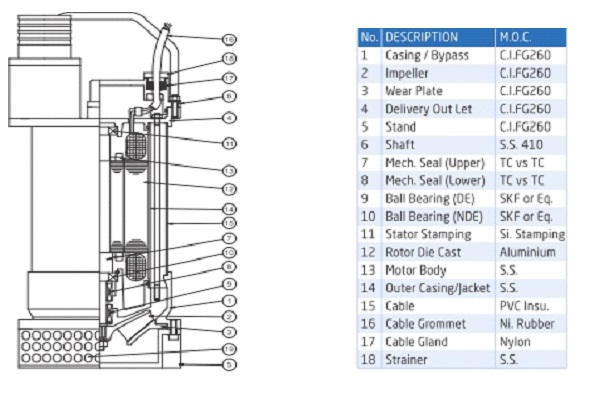

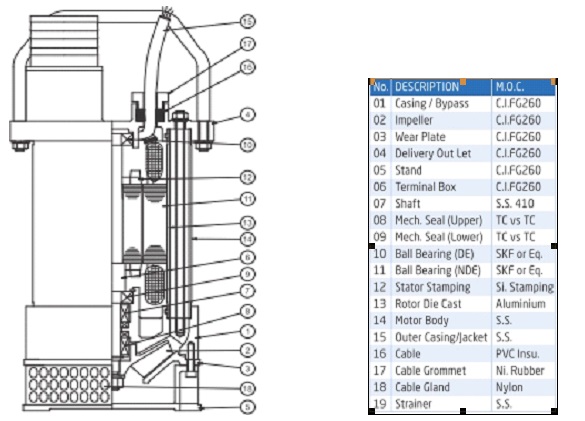

  • Motor Body : AISI 304, AISI 316
  • Outer Casing : AISI 304, AISI 316(Cooling Jacket)
  • Pump Casing : CFB,CFBM,CF3M,Aluminium Alloy.
  • Impeller : CA15, CA40 , CFB , CFBM, CF3M
  • Wear plate : CA15, CA40 , CFB , CFBM, CF3M
  • Shaft : AISI 420, AISI 431 , AISI 304 , AISI 316 , AISI 316L
  • Mechanical Seal: SIC/SIC, TC/TC, C/ SIC, C/ Cr Steel, C/Ce
  • Strainer : AISI 304 , AISI 316
  • Cable: H07RNF , FRLS
